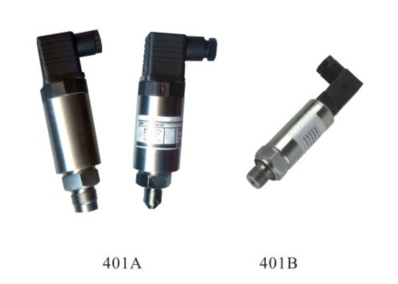

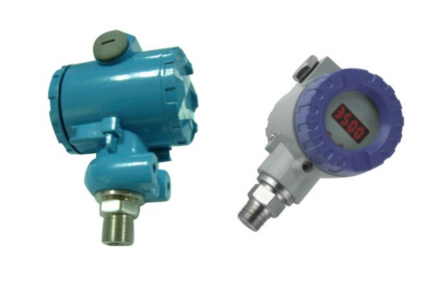

401 Series Pressure Transmitter
- Product details
-
Features & Applications
1. Assembled with imported high-performance chipsets, delivering world-class manufacturing technology and performance for pressure transmitters.
2. Compact, rugged and lightweight design, enabling easy installation and maintenance-free operation.
3. External continuous zero and span adjustment with wide turndown range for flexible on-site configuration.
4. Superior adaptability for all-weather operation in harsh environments and compatibility with various corrosive media.
5. Optional configurations: linear 100% pointer gauge, 3 1/2 digit LCD or LED digital display.
6. Available explosion-proof ratings: Intrinsically Safe (IS) type; Flameproof (Explosion-proof) type.

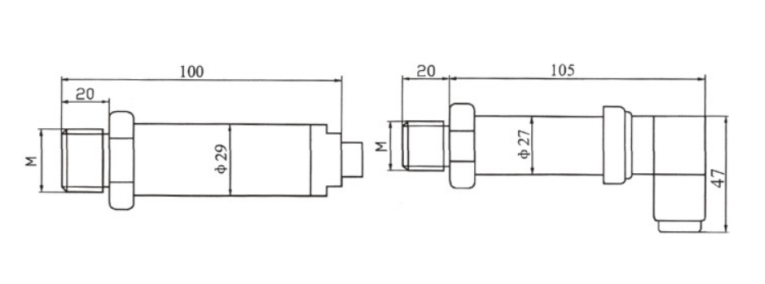

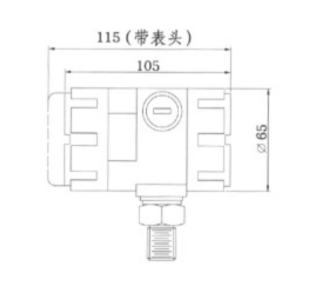

Customized model selection and detailed specification drawings are available upon request.
related products
311 Series Submersible Hydrostatic Level Transmitter
311 Series Submersible Hydrostatic Level...
401 Series Pressure Transmitter
401 Series Industrial Pressure Transmitt...
Product Inquiry
Please leave your message, we will contact you quickly after receiving it, thank you for your support!
Q
What is a thermocouple?
A
Thermocouples are the preferred solution for extreme temperature applications. They consist of two dissimilar metal wires joined at the measuring end, generating a voltage proportional to the temperature difference.
Working Principle: When two different metals are connected, the thermoelectric effect produces a voltage at the junction. This voltage increases with rising temperature, allowing measurement via reference tables.
Key Advantages:
• Temperature Range: -270°C to 2300°C (depending on type)
• Fast Response Time (typically 0.1–10 seconds)
• Robust Construction, vibration-resistant
• Relatively Low Cost
• No External Power Required
Q
What is the difference between RTD and thermocouple?
A
• RTD (Resistance Temperature Detector): Based on the principle that a metal conductor's resistance increases with temperature, it converts resistance measurements into temperature readings.
• Thermocouple: Operates on the Seebeck effect, where two dissimilar metals in contact generate a thermoelectric voltage proportional to temperature differences.
Features
• RTD: High accuracy, stable signal, excellent linearity, ideal for low to medium temperatures.
• Thermocouple: Simple structure, fast response, high-temperature resistance, wide measurement range.
Pros & Cons
• RTD Pros: High precision, strong anti-interference, reliable low-temperature performance.
Cons: Limited upper temperature range, bulkier size, slightly slower response.
• Thermocouple Pros: Broad temperature range, high-temperature tolerance, rapid response, suitable for moving/surface measurements.
Cons: Lower accuracy at low temperatures, requires cold junction compensation, weaker signal prone to interference.
