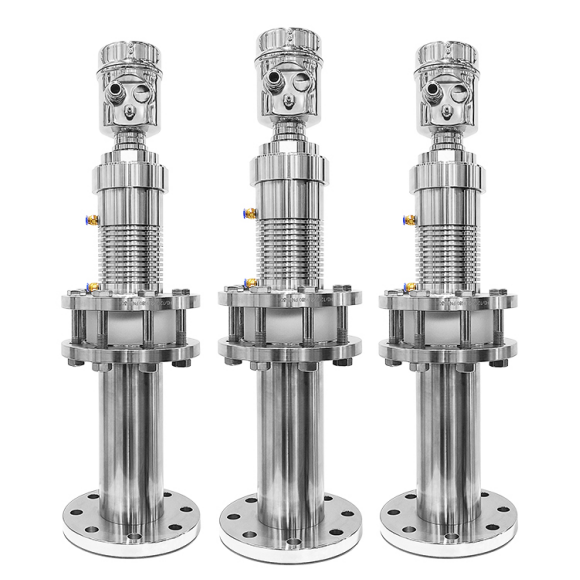

80G FMCW Radar Level Transmitter - High Temperature and Pressure
- Product details
-
Parameter
Specification
Process Connection
Flange
Frequency Range
76~81GHz
Transmission Angle
3°
Measuring Range
120m
Housing Material
Aluminum Cast/Stainless Steel
Power Supply Range
18-28VDC
Output Signal
4~20mA/HART (2-wire/4-wire), RS485/Modbus
Medium Temperature
-30~1000°C
Process Pressure
-0.5~3MPa
Measuring Accuracy
±1mm
Protection Grade
IP68
Explosion-Proof Grade
EX d ia IIC T6 Gb
Bluetooth
Optional
Application Range
Various high temperature and high pressure environments (solids, liquids)
related products
Product Inquiry
Please leave your message, we will contact you quickly after receiving it, thank you for your support!
Q
What is a thermocouple?
A
Thermocouples are the preferred solution for extreme temperature applications. They consist of two dissimilar metal wires joined at the measuring end, generating a voltage proportional to the temperature difference.
Working Principle: When two different metals are connected, the thermoelectric effect produces a voltage at the junction. This voltage increases with rising temperature, allowing measurement via reference tables.
Key Advantages:
• Temperature Range: -270°C to 2300°C (depending on type)
• Fast Response Time (typically 0.1–10 seconds)
• Robust Construction, vibration-resistant
• Relatively Low Cost
• No External Power Required
Q
What is the difference between RTD and thermocouple?
A
• RTD (Resistance Temperature Detector): Based on the principle that a metal conductor's resistance increases with temperature, it converts resistance measurements into temperature readings.
• Thermocouple: Operates on the Seebeck effect, where two dissimilar metals in contact generate a thermoelectric voltage proportional to temperature differences.
Features
• RTD: High accuracy, stable signal, excellent linearity, ideal for low to medium temperatures.
• Thermocouple: Simple structure, fast response, high-temperature resistance, wide measurement range.
Pros & Cons
• RTD Pros: High precision, strong anti-interference, reliable low-temperature performance.
Cons: Limited upper temperature range, bulkier size, slightly slower response.
• Thermocouple Pros: Broad temperature range, high-temperature tolerance, rapid response, suitable for moving/surface measurements.
Cons: Lower accuracy at low temperatures, requires cold junction compensation, weaker signal prone to interference.
