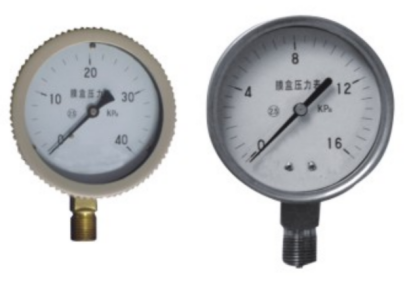

Capsule Pressure Gauge
- Product details
-
Instrument Principle:

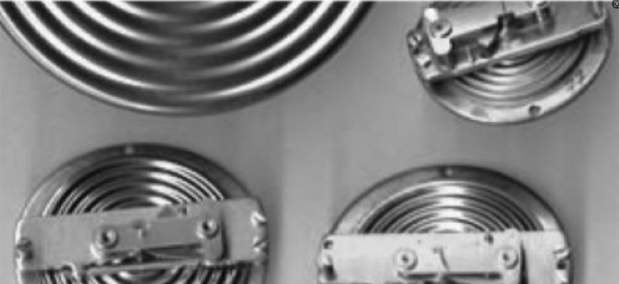

The instrument consists of a measuring system, transmission indicating mechanism, and case. It works based on the spring deformation of the corrugated capsule under the pressure of the measured medium. The free end produces corresponding deformation, which is amplified by the lever-gear transmission mechanism. The pointer fixed on the gear shaft indicates the measured value on the dial.
Application Scope:
Stainless steel capsule pressure gauges are used for micro-pressure and negative pressure of boiler ventilation and gas media. Standard capsule pressure gauges measure micro-pressure and negative pressure of non-corrosive, non-explosive media to copper alloys. The gauge can be locally installed and indicated on-site.
Main Technical Parameters:

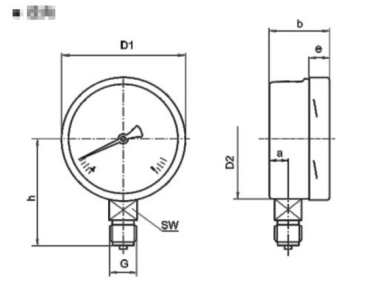

Case diameter: 60, 75, 100, 150 mm
Accuracy: 2.5%, 1.6%
Operating temperature: -25~55°C, relative humidity ≤80%
Temperature effect: Additional error ≤0.4%/10°C when deviating from 20±5°C
Vibration resistance: V·H·3
Measuring range: -60~30 KPa (customizable on request)
Please contact us for detailed specifications, models and catalog selection. We will provide customized selection services！
