Diaphragm Seal Pressure Gauge
- Product details
-
Instrument Principle:
When the pressure P of the measured medium acts on the diaphragm, the diaphragm deforms and compresses the sealing liquid in the pressure measuring system of the instrument, forming a pressure of P−ΔP. When the rigidity of the diaphragm is sufficiently small, ΔP is also very small, and the pressure formed in the measuring system is close to the pressure of the measured medium.
Application Scope:

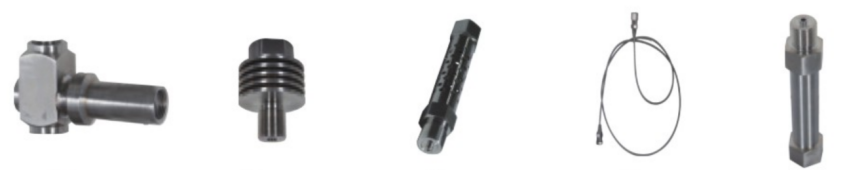

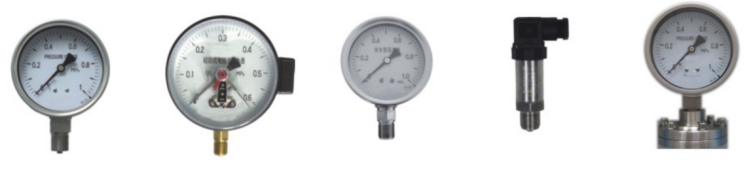

Diaphragm seal pressure gauges are mainly used in petrochemical, caustic soda, chemical fiber, pharmaceutical, food, and other processes. Composed of a general-purpose pressure gauge, connector, and diaphragm isolator, they are used when measuring media that are highly corrosive, high-temperature, high-viscosity, easy to crystallize, easy to solidify, or contain solid suspended particles.

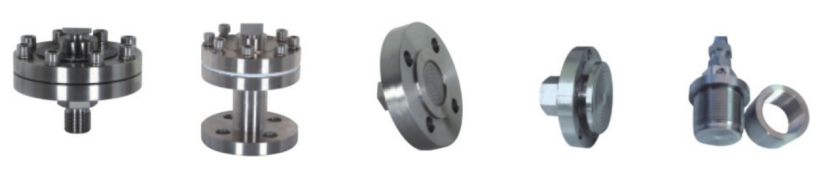

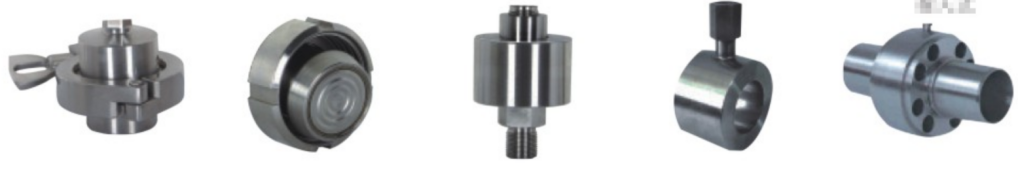

Flange Selection:
Common flange series are available according to GB (China), HGJ (Ministry of Chemical Industry), DIN (Germany), JIS (Japan), ANSI (USA), and actual usage. Special specifications can be customized.
Main Technical Parameters:
Measuring range: -0.1~100 MPa (customizable on request)
Isolator material: 1Cr18Ni, 316, 316L, 316+F4, F4
Diaphragm material: 316L, Cu30Ni70, Ta, H276C, F4, PTFE
Please contact us for detailed specifications, models and catalog selection. We will provide customized selection services！
