Differential Remote Transmission Pressure Gauge
- Product details
-
Application:
Two-wire intrinsically safe explosion-proof instrument for pressure measurement of media non-corrosive to copper alloy. With damper: measures pulsating, impact, sudden unloading pressure. With diaphragm: measures high-viscosity, corrosive media. Provides local indication and 4~20mA DC linear output. Compatible with DDZ-III instruments for recording and control. Used in petrochemical, metallurgical, power, light industry.
Main Technical Indicators:
Measuring range: See model list
Output signal: 4~20mA DC, two-wire
Accuracy class: 1.6

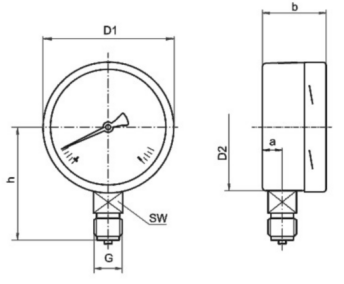

Dial diameter: Φ150
Load resistance: 250~350 Ω
Ex marking: ibIICT5
Power supply: 24V DC
Ambient: -10~55°C, humidity ≤85%, external magnetic field ≤5 Oe
Contact us for detailed specifications, catalogs, and customized selection.
related products
Diaphragm pressure gauge with isolated d...
Stainless Steel Pressure Gauge
Stainless steel pressure gauge with SUS3...
311 Series Submersible Hydrostatic Level Transmitter
311 Series Submersible Hydrostatic Level...
401 Series Pressure Transmitter
401 Series Industrial Pressure Transmitt...
Product Inquiry
Please leave your message, we will contact you quickly after receiving it, thank you for your support!
Q
What is a thermocouple?
A
Thermocouples are the preferred solution for extreme temperature applications. They consist of two dissimilar metal wires joined at the measuring end, generating a voltage proportional to the temperature difference.
Working Principle: When two different metals are connected, the thermoelectric effect produces a voltage at the junction. This voltage increases with rising temperature, allowing measurement via reference tables.
Key Advantages:
• Temperature Range: -270°C to 2300°C (depending on type)
• Fast Response Time (typically 0.1–10 seconds)
• Robust Construction, vibration-resistant
• Relatively Low Cost
• No External Power Required
Q
What is the difference between RTD and thermocouple?
A
• RTD (Resistance Temperature Detector): Based on the principle that a metal conductor's resistance increases with temperature, it converts resistance measurements into temperature readings.
• Thermocouple: Operates on the Seebeck effect, where two dissimilar metals in contact generate a thermoelectric voltage proportional to temperature differences.
Features
• RTD: High accuracy, stable signal, excellent linearity, ideal for low to medium temperatures.
• Thermocouple: Simple structure, fast response, high-temperature resistance, wide measurement range.
Pros & Cons
• RTD Pros: High precision, strong anti-interference, reliable low-temperature performance.
Cons: Limited upper temperature range, bulkier size, slightly slower response.
• Thermocouple Pros: Broad temperature range, high-temperature tolerance, rapid response, suitable for moving/surface measurements.
Cons: Lower accuracy at low temperatures, requires cold junction compensation, weaker signal prone to interference.
