Thermocouple Compensating Cables
- Product details
-
Application Scope:

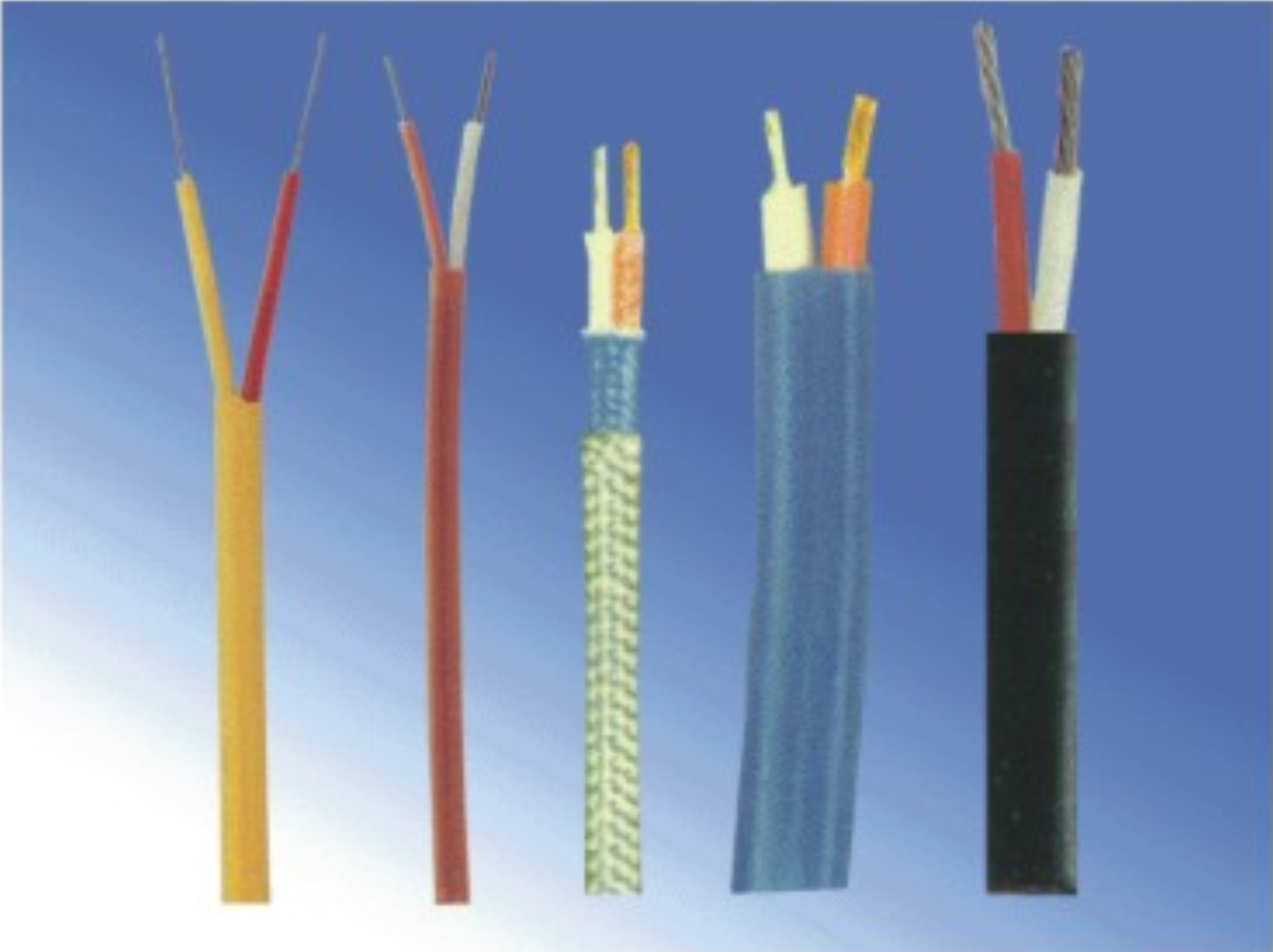

Thermocouple compensating cables are used to extend the thermocouple electrodes, i.e., to move the cold junction of the thermocouple, and connect with display instruments to form a temperature measurement system. The product quality is superior to the general national standards. The insulation and sheath adopt imported high-quality fluoroplastics, and adopt a new continuous extrusion process, endowing the cable with excellent acid resistance, alkali resistance, wear resistance and non-flame propagation properties. It can be immersed in oil and water for long-term use. Operating temperature: -60°C ~ 260°C, reaching international advanced level. Mainly used in various temperature measuring devices, widely applied in nuclear power, petroleum, chemical, metallurgy, electric power and other industries.
Model Designation:
1. Thermocouple type: S—Platinum-rhodium 10-platinum; N—Nicrosil-nisil; K—Nickel-chromium-nickel silicon; E—Nickel-chromium-copper nickel; J—Iron-copper nickel; T—Copper-copper nickel.
2. Type or purpose: X—Extension type; C—Compensation type.
3. Usage category: G—General use; H—Heat resistant.
4. Accuracy class: A—Precision; B—General.
5. Insulation material: V—PVC (70°C or 105°C); B—Alkali-free glass yarn; F—PTFE; P—Tinned copper or bare copper shield.
6. Sheath material: V—PVC (70°C or 105°C); B—Alkali-free glass yarn; F—PTFE; P—Tinned copper or bare copper shield.
7. Structure: R—Stranded flexible core; P—Shielded.
8. Specification: Number of pairs × cross-sectional area.
Example:
KC-HA-FFRP 2×1.5: Heat-resistant, precision-grade, shielded flexible extension K-type compensating cable 2×1.5 mm²
