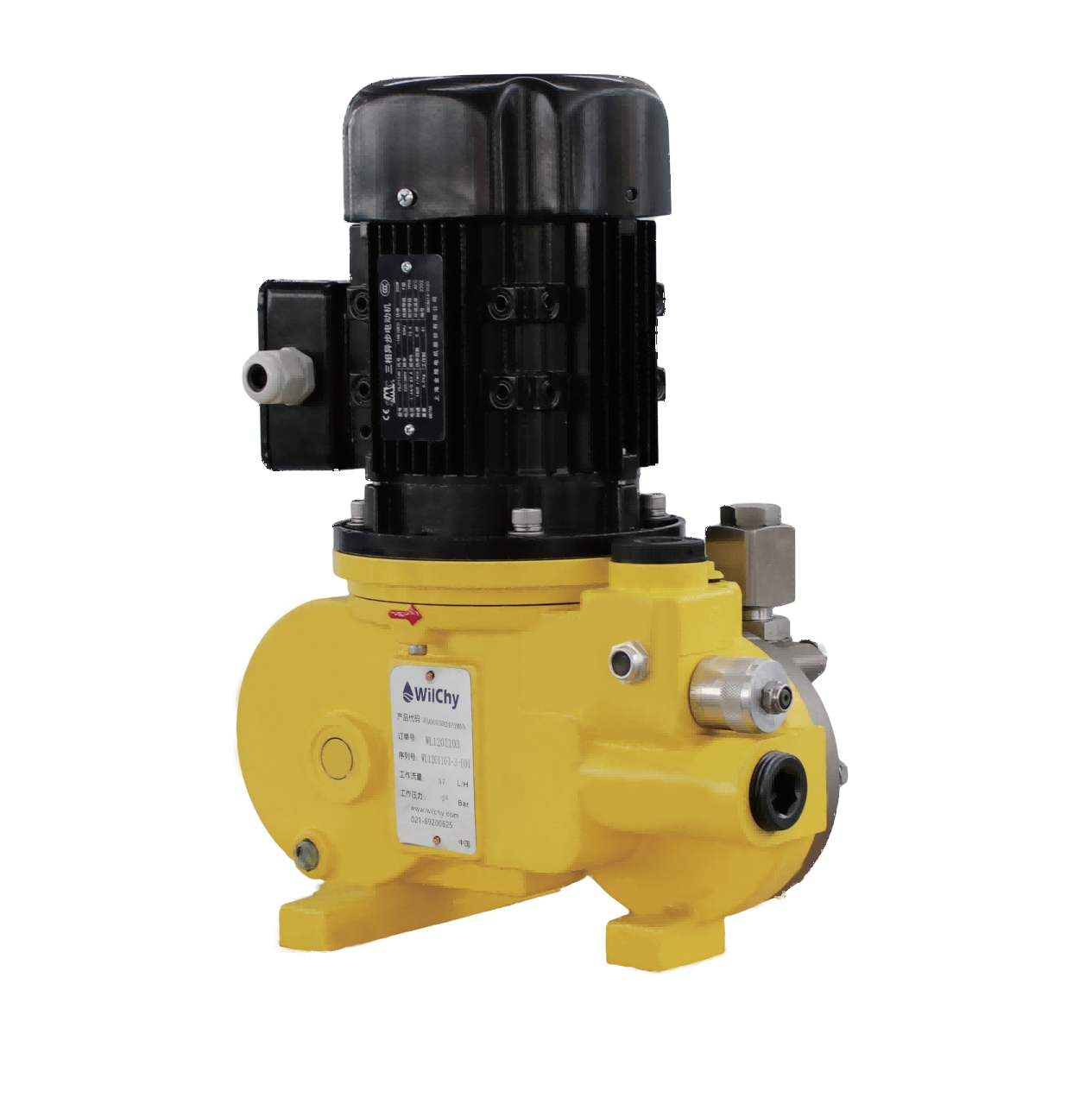

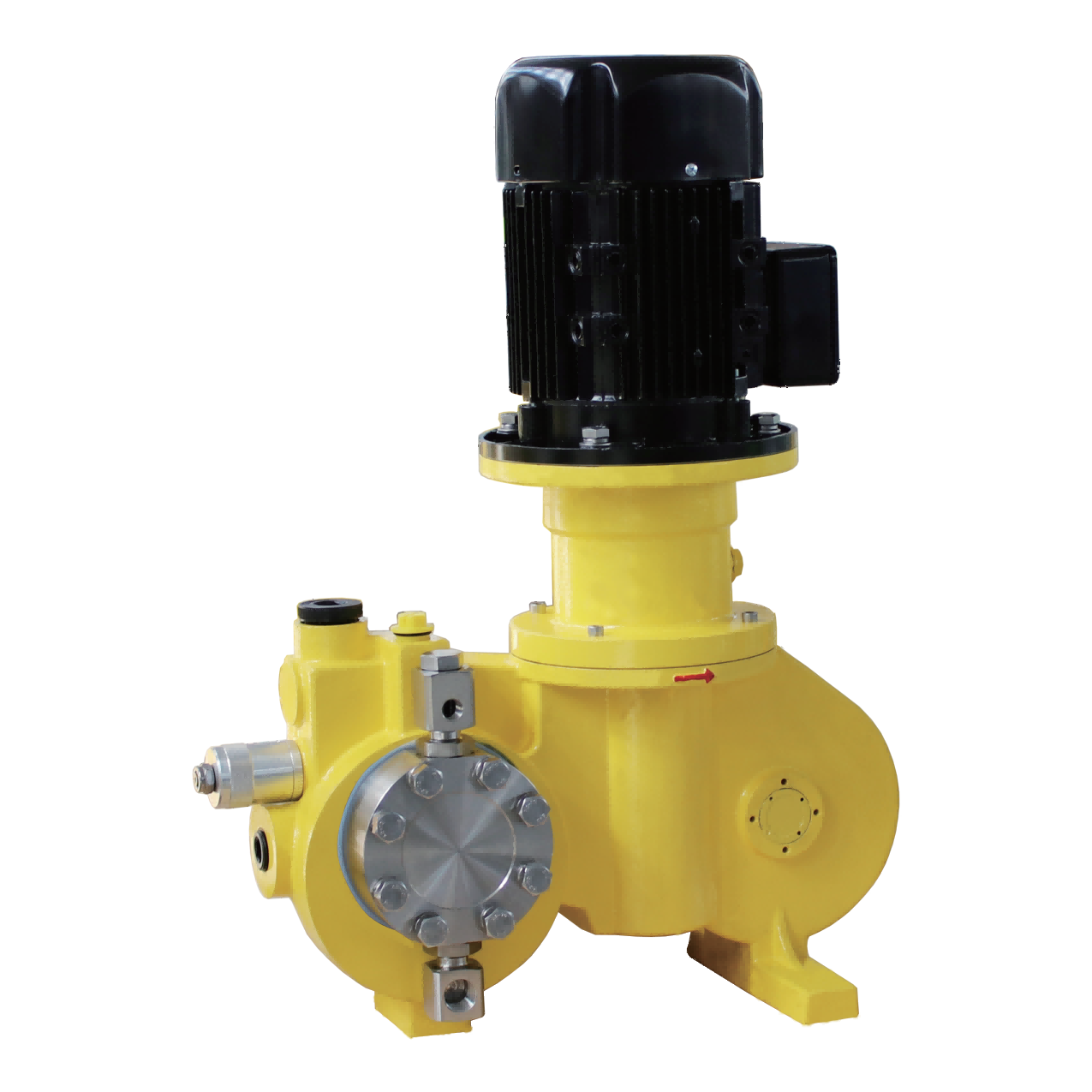

WaxChy Type Hydraulic Diaphragm Metering Pump
- Product details
-
Core Performance Parameters
Parameter Item Specific Index Parameter Item Specific Index Max Flow Rate 329 L/H Max Discharge Pressure 211 bar Flow Adjustment Range 30% – 100% Steady-State Accuracy ±1% Suction Lift Up to 3m water column Core Structural Features & Advantages
Part Core Advantages & Configuration Drive End Unique integrated eccentric worm gear structure (compact, precise stroke, small footprint);
Wear-resistant ball bearings for stable operation;
Oil bath lubrication to extend service life;
Flow adjustable in both stop and running states;
Manual or variable frequency control options
Hydraulic End Bypass oil replenishment design,Hydraulically driven diaphragm for longer service life;
Built-in adjustable safety valve to protect diaphragm and pump head from overpressure damage;
High-precision check valve for accurate dosing;
Multi-material pump heads available (PVC, PVDF, 316SS, Hastelloy 20, Hastelloy alloy) to suit various media;
Optional pressure-type double diaphragm leak detection (local/remote) alarm
Core Application Scenarios
Industry Application Scenarios Environmental Protection Wastewater treatment, chemical dosing Petrochemical & Refining High-pressure chemical injection, fluid transfer Power & Metallurgy Boiler water treatment, process fluid dosing Pharmaceutical & Food Precise reagent dosing, food additive metering
related products
Polyethylene Insulated Computer Cables
300/500V AC PE/XLPE insulated instrument...
Diaphragm pressure gauge with isolated d...
Stainless Steel Pressure Gauge
Stainless steel pressure gauge with SUS3...
311 Series Submersible Hydrostatic Level Transmitter
311 Series Submersible Hydrostatic Level...
Product Inquiry
Please leave your message, we will contact you quickly after receiving it, thank you for your support!
Q
What is a thermocouple?
A
Thermocouples are the preferred solution for extreme temperature applications. They consist of two dissimilar metal wires joined at the measuring end, generating a voltage proportional to the temperature difference.
Working Principle: When two different metals are connected, the thermoelectric effect produces a voltage at the junction. This voltage increases with rising temperature, allowing measurement via reference tables.
Key Advantages:
• Temperature Range: -270°C to 2300°C (depending on type)
• Fast Response Time (typically 0.1–10 seconds)
• Robust Construction, vibration-resistant
• Relatively Low Cost
• No External Power Required
Q
What is the difference between RTD and thermocouple?
A
• RTD (Resistance Temperature Detector): Based on the principle that a metal conductor's resistance increases with temperature, it converts resistance measurements into temperature readings.
• Thermocouple: Operates on the Seebeck effect, where two dissimilar metals in contact generate a thermoelectric voltage proportional to temperature differences.
Features
• RTD: High accuracy, stable signal, excellent linearity, ideal for low to medium temperatures.
• Thermocouple: Simple structure, fast response, high-temperature resistance, wide measurement range.
Pros & Cons
• RTD Pros: High precision, strong anti-interference, reliable low-temperature performance.
Cons: Limited upper temperature range, bulkier size, slightly slower response.
• Thermocouple Pros: Broad temperature range, high-temperature tolerance, rapid response, suitable for moving/surface measurements.
Cons: Lower accuracy at low temperatures, requires cold junction compensation, weaker signal prone to interference.
